Laser Marking Services Near Newcastle on Anodised Aluminium Plates – Gate 7

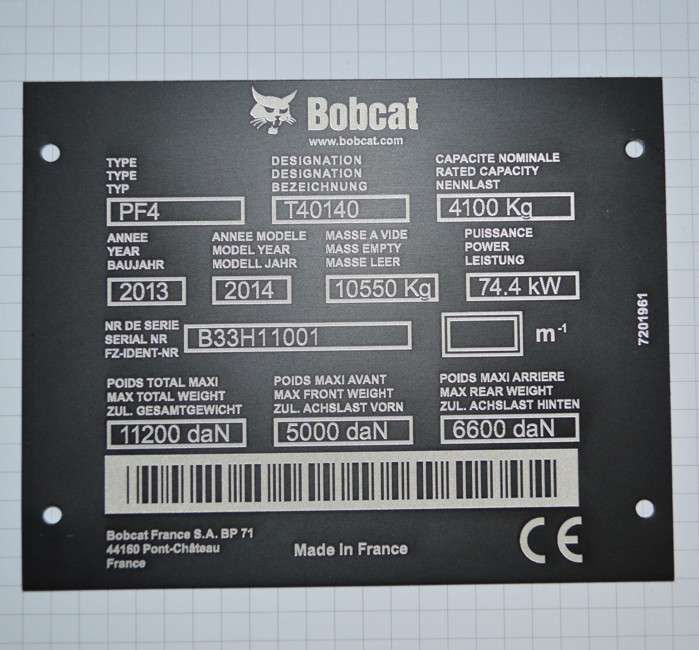

In this case study we visit our customer Gate 7. We did laser marking on their black anodised aluminium labels for their assortment of customer. The laser marking of anodised aluminium is an industry standard and in this particular case study you can see repeatability of the laser marking.
Laser marking of black anodised aluminium, in this case, was done on our inhouse flash lamp Nd:YAG laser system with a f-180 F-theta lens, the marking process was normally about a minute to process, but this could be vastly improved on the newer Fiber lasers, with just as much contrast as on the older Nd:YAG system. The product is laser marked in one pass with an outline added afterwards to ensure that the writing is crisp and sharp.
The component is located in a simple corner jigg which allows the standard shapes of the anodised aluminium plates to be easily positioned enabling faster throughput of the parts and therefore lower cost for the customer. These marks are repeatable to a greater accuracy than 0.1mm. For better tolerances or more detailed parts, separate bespoke jig can be made and used by ourselves.

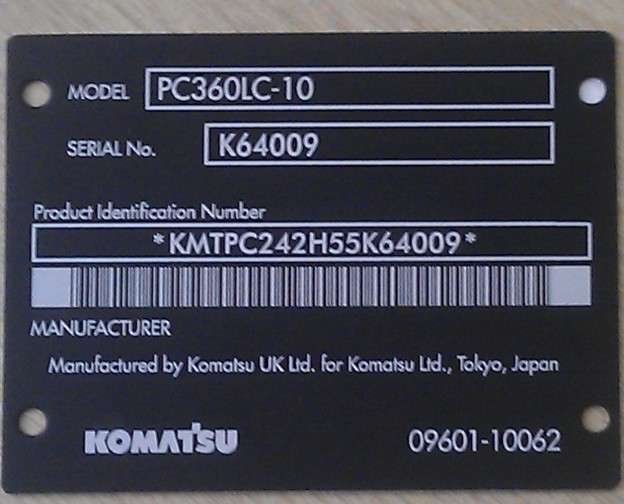

These anodised aluminium naming plates are used for identification on special purpose machinery. For more indepth information and to view all other offering at the customer please visit Gate 7 Vinyl printing service | Custom industrial decals
If you would like further information on our Laser marking Services near Newcastle capabilities or anywhere else in the country. Please either visit our Case Studies page, request a call back or talk to one of our laser marking specialists by going to our contact page – link below.
