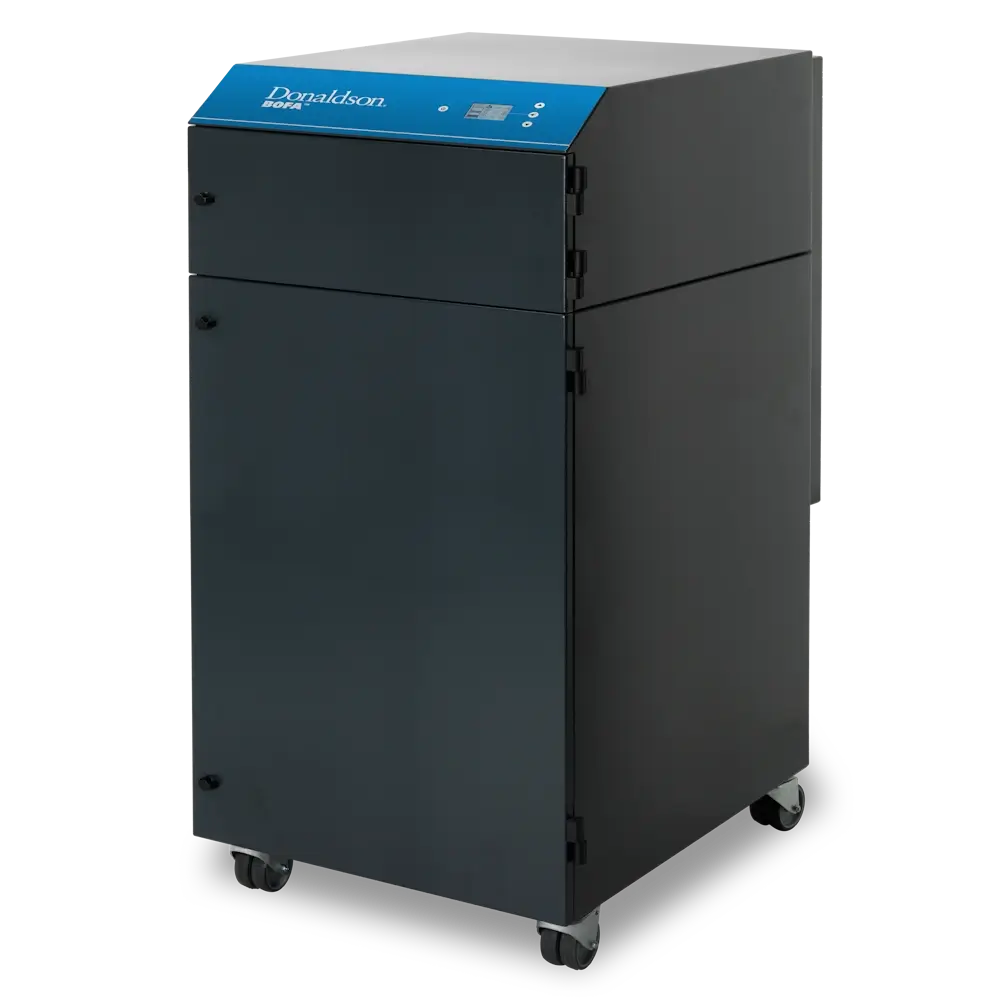

BOFA AD 500 iQ Extractor

Description

The AD 500 iQ mid to high-end laser fume extraction system combines extremely large filter capacity with high airflow and pressure rates, making it the ideal choice for heavy-duty applications that generate large amounts of particulate and gaseous organic compounds.

Performance has been further enhanced with the inclusion of several features including BOFA’s acclaimed patented Intelligent Operating System (iQ), making the AD 500 iQ one of the most advanced systems available.

Standard Features

• iQ Operating system
• Reverse flow air filter technology
• High airflow and pressure rates
• DeepPleat DUO pre filter
• Combined HEPA/Gas filter incorporating ACF technology
• Automatic flow control system
• Real time airflow reading
• Independent filter condition monitoring, display and warnings
• High contrast display
• ‘Run safe’ operation
• Remote diagnostics via USB
• Filters with long life and low replacement cost

Optional Features

• VOC gas sensor (Volatile Organic Compound)
  • This sensor and alarm are optional extras on some systems. If the VOC (Volatile Organic Compound) alarm option is installed in your unit, the extractor will monitor and detect the level of VOC particles in the air. If the VOC level rises above a pre-set level then the LED will flash red and alarm will sound. This will then require the replacement of the Combined filter.
• Remote stop / Start interface
  • The Remote Stop/Start feature enables the extraction unit to be remotely turned On / Off via an external signal. This feature can be configured in 3 ways
    • DC Voltage input – Range 12-24VDC
    • Volt free input – Open / Closed contacts
    • Override – Stop / Start feature switched off
• Filter Change / System Fail Signal
  • With this option the system will output a signal to alert the user when the extractor has failed or when the filters are blocked. This feature will not directly stop the extractor from running, correctly, but if fitted this feature should be terminated correctly before power is applied to the system. With this configuration the Filter blocked & System fail signals will be linked together to give a combined single output.
• Interfacing with host laser
• On-board Compressor (POA)
• Optional filter medias

Technical Data

Dimensions (HxWxD): 1205 x 615 x 790mm

Airflow /Pressure: 550m3/hr | 100mbar

Electrical Data: 230v 1ph 50/60Hz Full load current: 9.5 amps / 1.1kw

Weight: 146kg

Approvals: CE
