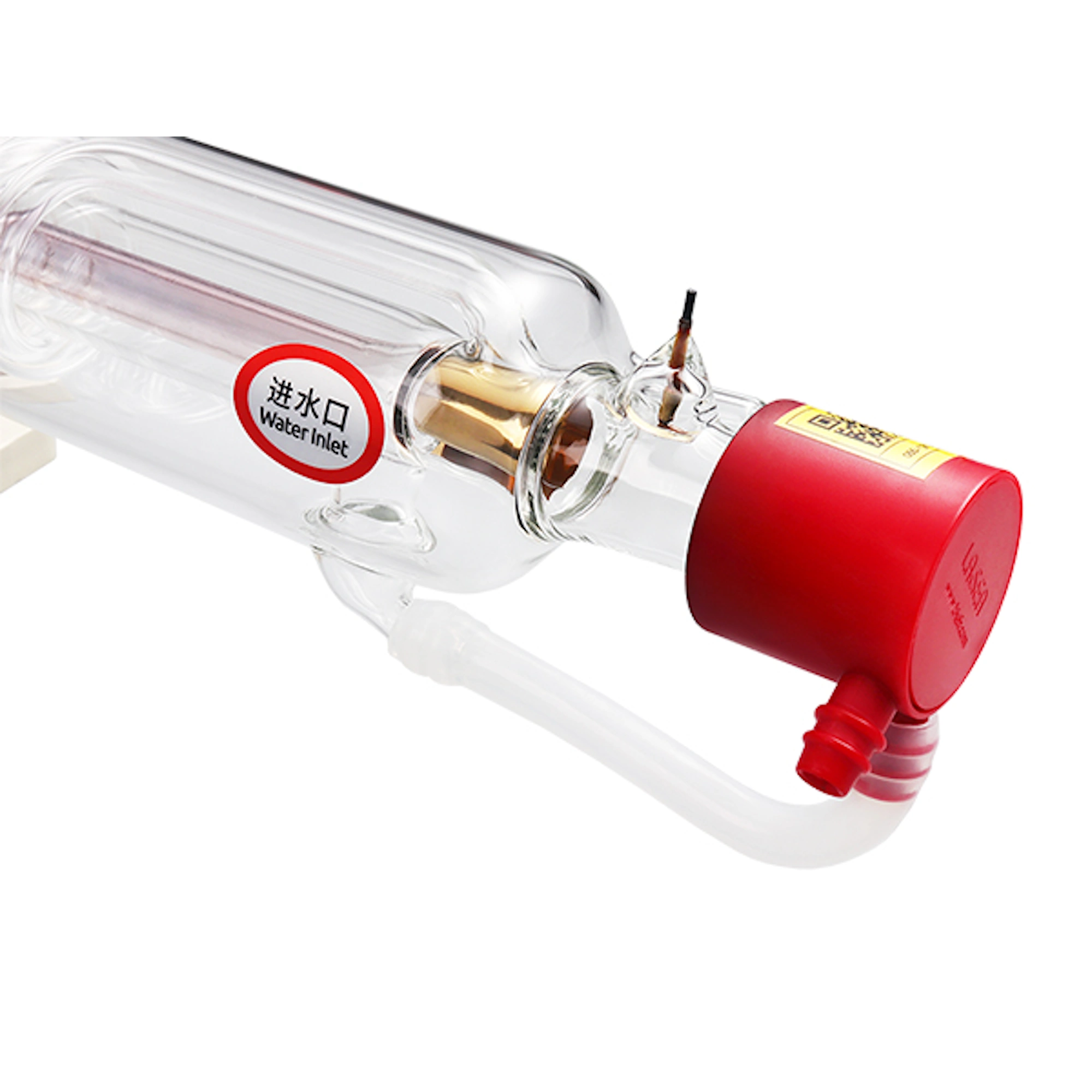

EFR Laser Tube 1200CL – 60W Glass CO2

Description

Our genuine 60W CO2 EFR Laser Tube (1200CL)is a common laser equipment accessory that is characterized by a stable performance, reliable quality and low failure rate.

The CO₂ Laser tube is applicable for laser cutting, laser engraving, and laser marking in different industries, including advertising, packaging, craftwork processing, decorative construction materials, and clothing.

Features
1. Stable Laser Power: Utilises high quality US gas mix which contributes to a stable laser power. This subsequently slows down the dissociation rate of the working gas, prolonging the service life.

2. Good Beam Mode: The CO₂ Laser tube can achieve a TEM00 mode above 95%, and features a laser spot size ranging from 3-5mm.

3. High Power: The laser power is generally above 70W.

Model	Length (mm)	Outer Diameter (mm)	Rated Power (W)	Maximum Power (W)	Max Operating Current	Starting Voltage (KV)	Catalyst
1200CL	1200±20	55±2	60W	70 W	22mA	19KV	Yes



The EFR CO2 1200CL Series Laser Tube

With excellent capabilities to cut and engrave, the EFR 1200 series CO₂ Laser tube is the ideal consumable for laser cutting and  laser engraving machines. It can achieve high frequency pulse engraving under a 5mA current, which is perfect for the clean cutting of card, paper and other thin materials. You may want to consider getting one of our matched, high quality HV-power supplies at the same time to optimise the performance of your laser machine.

Operating Condition
1) Water cooling
Coolant: pure water
Flow rate: 2-5L/min.
Standard water temperature: 10℃ -40℃

2) Working environment
Temperature: 2℃-40℃
Humidity: 10%-60%

3) Operating current
The input current of the CO₂ Laser tube is 22mA, as is the maximum current, and the long-term operation current is 22mA or below. The working life can be extended if the current is kept at 22mA and below.

The above currents should be in accordance with the actual currents displayed on the ammeter, which is in a series connection with the cathode. If the laser tubes are used incorrectly for long-term, over-current use, the color of the negative electrode will change, and the service life significantly reduced.

Cleaning Tips: Please do not use cotton swabs or other wipes to scrub the laser output window on this laser tube, as the coating is very delicate and if damaged, can affect the output power.

The specified cleaning method for the windows is as follows
1. When the laser tube output window is stained, first turn off the laser tube.
2. Use an air dust blower to blow away dust and dirt on the window.
3. Use a syringe to spray ethanol on the window.
4. After the ethanol fully evaporates, you can turn the laser tube back on and check performance.
5. If the above methods do not work effectively, please get in touch with our service team for more advice.

Prevention is better than cure, always protect the laser output window from contamination through the use of effective extraction and regular maintenance.

Special Notice
1. Do not use acetone to clean the glass.
2. When testing the laser beam output onto acrylic, it is advised to keep the acrylic at least 300mm from the end of the tube to minimise contamination.

Safety: As the CO₂ glass laser device generates invisible light, always wear eye protection gear when operating in a Class II, III or IV environment. A high voltage safety label is sited at the positive pole.

Storage and Transportation Requirements: When storing and transporting the CO₂ Laser tube, please drain the cooling liquid and cover the tube ends with dustproof plastic bags. For storage, the required environmental temperature is 2-40℃ and the humidity ranges from 10-60%.

Adhesive tapes and sponges should be used to fix the laser tubes and prevent sliding during transport. A 70mm sponge should be use at the end of the windows, and a 50mm sponge should be at the end of the fully reflecting mirror.

Package Size Laser Tube 1200CL

Quantity of Laser Tube	Product Net Weight (Kg)	Carton Capacity	Carton Dimension (L×W×H)	Carton Dimension (with Sponge) (L×W×H)	Product gross Weight (Kg)
1	1.7kg	1 laser tube, small carton	131×16.5×12.5cm	131×24.5×20.5cm	2.5kg
1	1.7kg	1 laser tube, large carton	141×25×21cm	141×33×29cm	4kg
