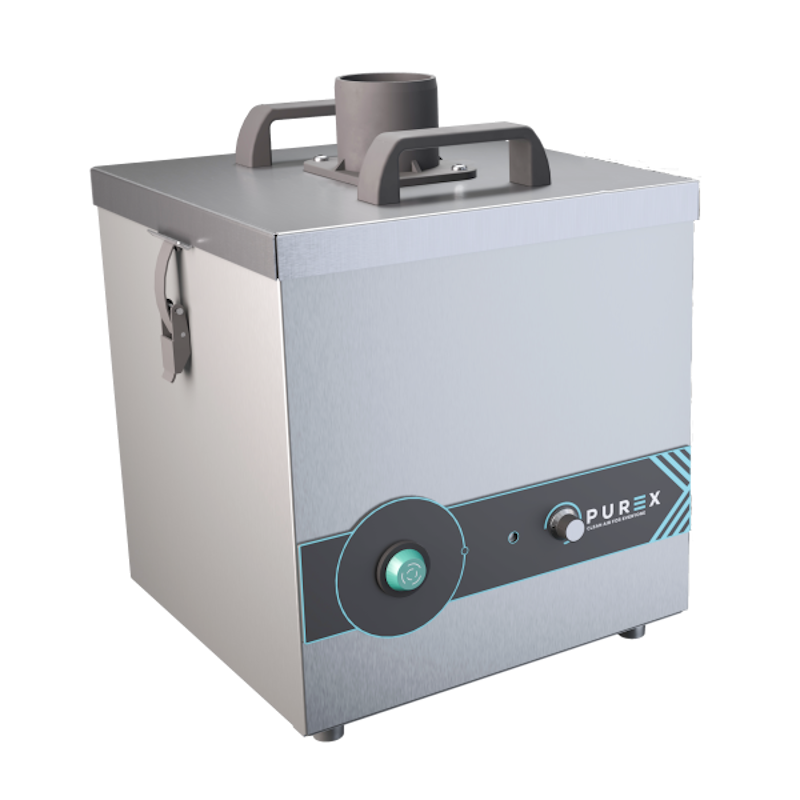

Purex FumeCube Max Fume Extractor for Laser Systems
£797.08
The FumeCube Max fume extraction system is designed to effectively remove harmful dust and fumes produced by laser engraving. A favourite throughout the laser industry, our series of Purex fume extractors are simple to use and set up. Just plug into a standard 13A socket and you are good to go!
Supplied with Hose Connection Kit P/N 100032: 80mm – 50mm x 3.0m
Purex FumeCube Max Product Brochure can be down loaded here.
Ideal for use with our Lightscribe Laser Systems.
And for a limited time only – FREE SHIPPING
Available Options
Description
The FumeCube Max fume extraction system is designed to effectively remove harmful dust and fumes produced by laser engraving. A favourite throughout the laser industry, our series of fume extractors are fully automatic, meaning users only have to set the appropriate airflow upon installation.
Simple to use, the FumeCube Max laser engraving fume extractor is easy to use and inexpensive to run.
- Highest grade HEPA and carbon technology
- Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
- Operates worldwide with no loss of performance
- Wide variety of connection kits, supplied with 3m x 500 flexible hose and 2 connection cuffs
Standard Features
- Varicolour filter blocked warning system
- Highest grade HEPA and Carbon technology
- Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
- Quiet in operation
- Simple to install and easy to relocate
- Low capital and running costs
- Quick change patented F8/9 Labyrinth pre-filters deliver longer filter life
- Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
- Activated carbon filtration removes harmful gas
- Precision made from stainless steel
- High performance brushless motors
- For the Laser industry
Technical Data
Dimensions (HxWxD): 493 x 308 x 330mm
Airflow: 170m3/hr
Sound Level: <60dBa
Electrical Data: 230v 1ph 50/60Hz 0.32kw
Weight: 14kg
Approvals: CE
Additional information
| Weight | 14 kg |
|---|---|
| Dimensions | 49.3 × 30.8 × 33 cm |
| Lightscribe Compatibility | Lightscribe Desktop, Lightscribe WS Pro |
| Hose Inlet Connection | 80mm |
| Labyrinth pre-filter F8/9 | Part Number: 111124 |
| Combined HEPA / Chemical | Part Number: 110507 |
| Compatible Hose Kits | Hose Kit: Laser 80 to 50mm suitable for Lightscribe systems supplied as standard Code:100032 |
| Cabinet Construction | Brushed Stainless Steel |
| Delivery | We can deliver to all parts of the UK as well as the Republic of Ireland. All Purex Laser Fume Extraction systems are built to order. The average lead time on any Purex Laser Fume Extraction system is typically 3 – 4 weeks. |
| Warranty | Purex warrants that the Goods manufactured by it will be free from defects in materials and workmanship for a period of 12 months from the date of installation or 15 months from the date of despatch from Purex’s premises, whichever period expires earlier. |
