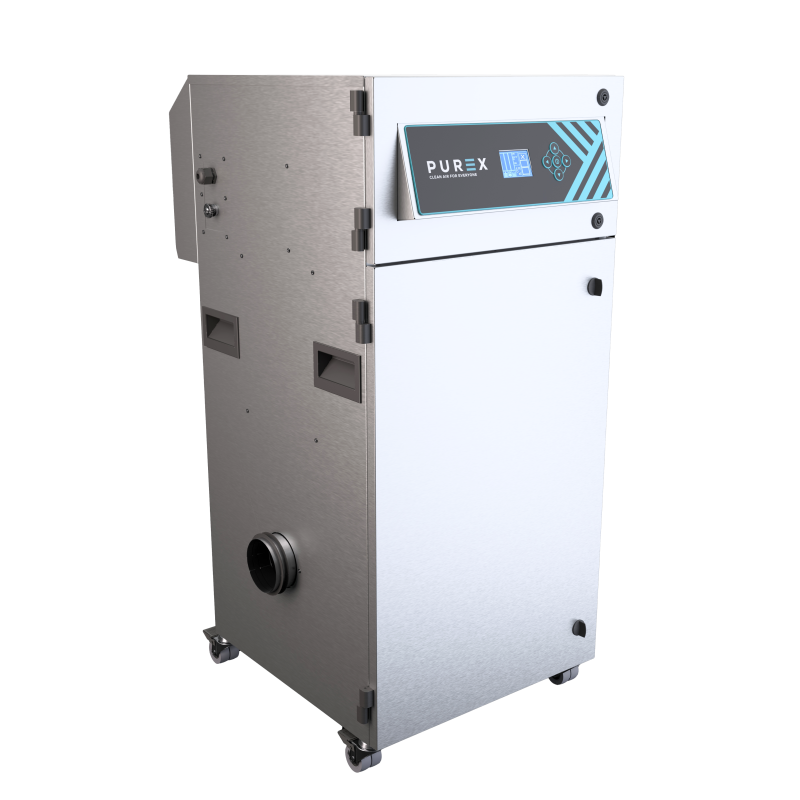

Purex iFume 800i 2-Tier Fume Extractor for Laser Systems
£3,322.14
The iFume 800i 2-Tier fume extraction system is designed to effectively remove harmful dust and fumes produced by laser engraving. A favourite throughout the laser industry, our series of iFume fume extractors are fully automatic, meaning users only have to set the appropriate airflow upon installation.
All functions are fully automatic; all the user has to do is set the appropriate airflow on installation. A dedicated control, monitoring and display system unique to Purex fume extractors. Purex filter monitor units are in all our digital units; which is highly recommended for gases and chemicals emitted. See all system features below:
Supplied with a Hose connection kit P/N:100105
View the product range video here.
Purex iFume 800i 2-Tier Product Brochure can be downloaded from here.
Ideal for use with our Lightblade 6090 laser systems.
And for a limited time only – FREE SHIPPING
Available Options
Description
The iFume 800i 2-Tier fume extraction system is designed to effectively remove harmful dust and fumes produced by laser engraving. A favourite throughout the laser industry, our series of iFume fume extractors are fully automatic, meaning users only have to set the appropriate airflow upon installation.
With a dedicated control and display system, unique to Purex fume extractors, the iFume 800i 2-Tier laser engraving fume extractor is easy to use and inexpensive to run.
- Clear & informative graphic display
- Highest grade HEPA and carbon technology
- Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
- Gas and particle sensors to warn the operator
- Adjustable airflow
Standard Features
- Low capital and running costs
- Quick change patented Labyrinth pre-filters deliver longer filter life
- Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
- Activated carbon filtration removes harmful gas
- Simple to install and quiet in operation
- Easy to relocate
- Precision made from stainless steel
- High performance brushless motors
- Remote interface capability
- Widely used across Laser & Electronic industries.
Technical Data
Dimensions (HxWxD): 1155 x 571 x 675mm
Airflow: 800m3/hr
Volume Sensing: For laser and machine processing
Electrical Data: 230V 1ph 50/60Hz 2.4kw
Weight: 83kg
Approvals: CE
Additional information
| Weight | 83 kg |
|---|---|
| Dimensions | 67.5 × 57.1 × 115.5 cm |
| Lightblade Compatibility | Lightblade 6090 |
| Hose Inlet Connection | 100mm |
| Labyrinth pre-filter F8/9 | Part Number: 202272 (2 x 111004) |
| Combined HEPA / Twin Chemical | Part Number: 113660 |
| Compatible Hose Kits | Hose Kit: Laser 100 to 100mm suitable for Lightblade 6090 supplied as standard. Code:100105 |
| Cabinet Construction | Brushed Stainless Steel |
| Delivery | We can deliver to all parts of the UK as well as the Republic of Ireland. All Purex Laser Fume Extraction systems are built to order. The average lead time on any Purex Laser Fume Extraction system is typically 3 – 4 weeks. |
| Warranty | Purex warrants that the Goods manufactured by it will be free from defects in materials and workmanship for a period of 12 months from the date of installation or 15 months from the date of despatch from Purex’s premises, whichever period expires earlier. |
