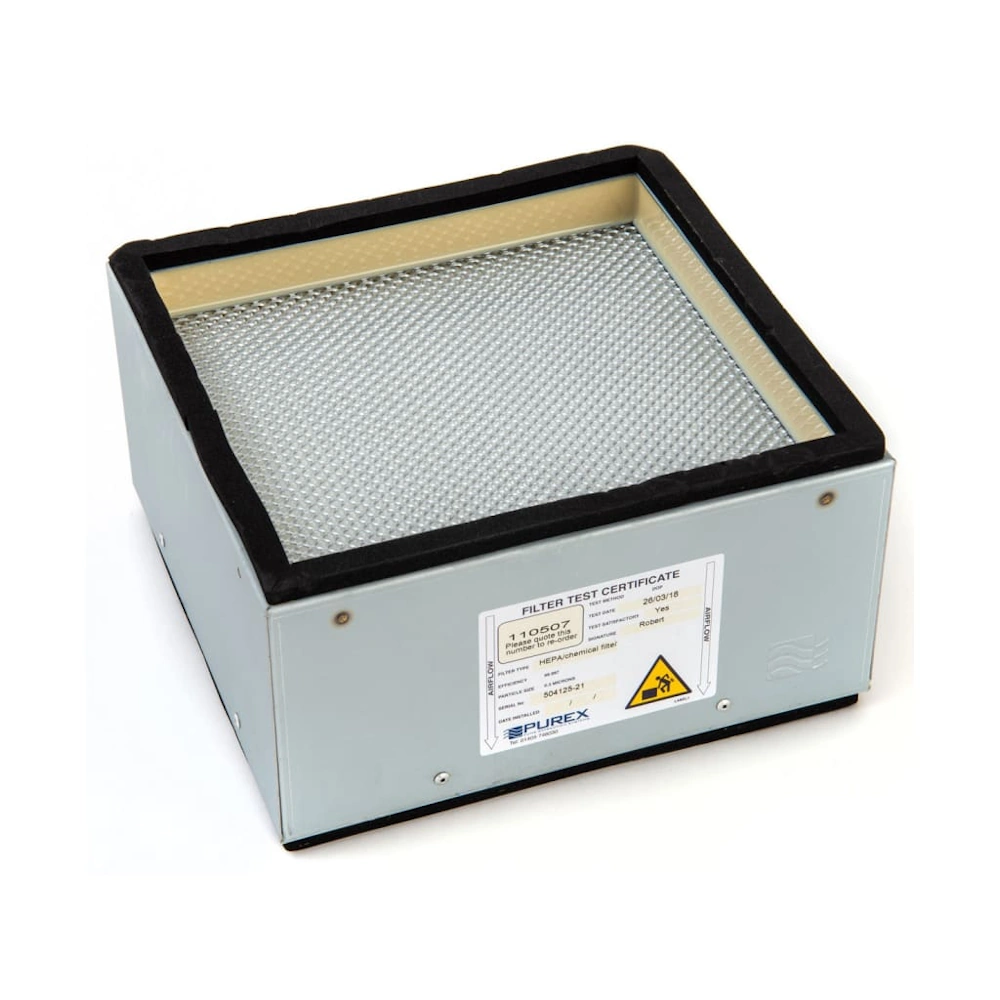

Purex FumeCube Max Main Filter for Lasers – Hepa Chemical (PN: 110507)

Description

This Purex FumeCube Max main filter includes a Hepa filter and Chemical filter, is an essential component for laser systems, ensuring efficient filtration and protection against harmful contaminants.

It is also suitable for:

• PUREX FumeCube Max Fume Extraction System
• 2 tip soldering extraction units by Purex

Key Features of the Main Filters:

Purex employs unique combinations of filter media in the Purex FumeCube Max Replacement main filters. These are designed to capture particles, gases, and vapours produced during processes like laser engraving, laser marking, and inkjet printing. Each filter is assigned a distinct serial number and undergoes individual testing and certification to guarantee both performance and safety.

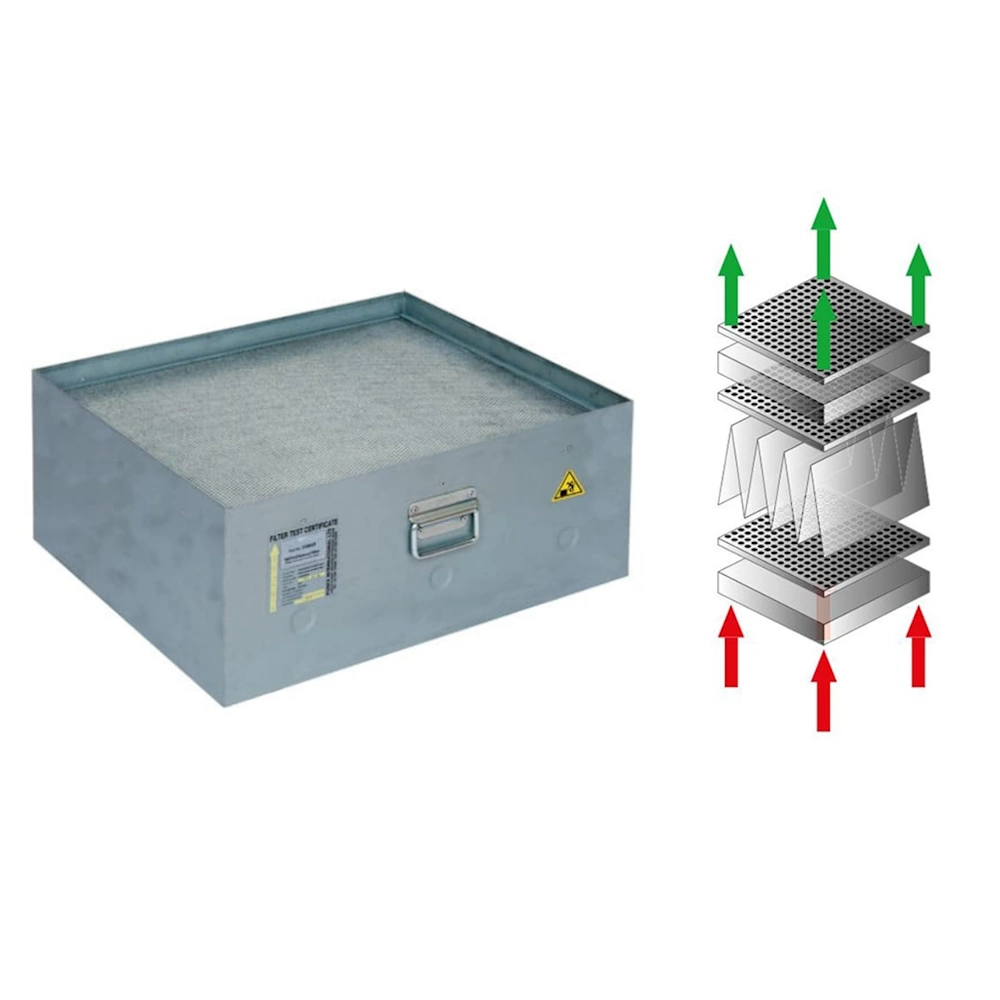

• Purex HEPA filter elements undergo precise manufacturing using pleated material, which includes reinforcing strips. These strips serve to separate the pleats and prevent any airflow vibration or collapse.
• Furthermore, air equalization plates are positioned between the media layers to enhance the strength of the filter housing and evenly distribute airflow throughout the filter. This ensures optimal utilization of all filter media.
• HEPA/Chemical filters effectively filter out particles as small as 0.3 microns with a 99.997% efficiency rate, while also absorbing a diverse range of gases and vapours.

Download the Purex Main Filter catalogue page here!

The product brochure can be found here.

Shipping Dimensions:

Product Height: 12cm

Product Length: 23.7cm

Product Width: 25.1cm

Filter Weight: 3kg
